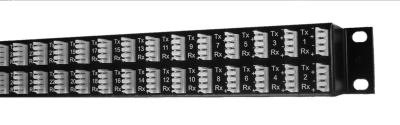

![[48 E1 Balun Panel with Type 43 coax connectors back veiw]](/images/baluns/panel/krone/krone-balun-panel-48ekback.jpg "48 E1 Balun Panel with Type 43 coax connectors back veiw")
Only 1U high, the Tekmos 48 E1 Coax to KATT Impedance Matching Balun Panel provides 75-120 ohm conversion (coax to twisted pair) for 48 E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of 96 unbalanced 75 ohm coax connections with 48 balanced 120 ohm twisted pair connections.
Available with 1.0/2.3 or HDC 43 coax connectors.
Also available:
16 E1 Balun Panel
21 E1 Balun Panel
24 E1 Balun Panel
Also available with 1.0/2.3
| Part Number | Description |
|---|---|
| TK-UBP04-048-KTO | Balun Panel 48E1 1.0/2.3 to KATT |
| TK-UBP11-048-KTO | Balun Panel 48E1 HDC43 to KATT |
| Specifications | |
|---|---|
| Coax Connector (75 ohm) | 96 x HDC43(M) or 1.0/2.3(F) |
| Twisted Pair Connector (120 ohm) | 48 x KATT IDC 4 way Krone & ATT 110 tool compatible |
| Transmission Line | ITU-T G.703 or G.704 |
| Speed | 2.048Mbit/s (E1), 8.448Mbit/s (E2) 1.544Mbits/s (T1), 6.312Mbit/s (T2) |
| Cross Talk | Better than -50dB at 1 to 10Mhz |
| Insertion Loss | Less than 0.35dB |
| Return Loss | Better than 18dB |
| Power Requirements | None |
| Operating Temperature | -40°C to 85°C |
| MTBF | 30 years |
| Dimensions (WxHxD) | 482 x 44 x 70 mm |
| Weight | 1.7 kg max. |
| Materials | Front panel - Tufnol Case - Zintec, black powder coated |
| Warranty | 10 years, parts and labour |
| Conformance | RoHS, CE |

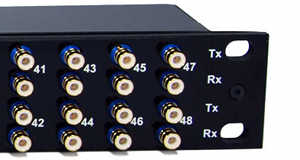

![[Photo of 48 E1 Balun Panel with HDC43 coax connectors]](/images/baluns/panel/krone/krone-balun-panel-48e1-type-43-coax-z-300160.jpg "48 E1 Balun Panel with HDC43 coax connectors")
