24 E1 Balun Panel - Coax to Krone IDC

[Made in Britain logo]
[Photo of 24 E1 Balun Panel with BNC coax connectors]
[Photo of 24 E1 Balun Panel showingKrone IDC connectors]
  • G703 E1 Balun Panel
  • 75 - 120 ohm
  • Coax - KATT punch down
  • 19 inch 1U Rack Mount
  • Modular Construction
    • Up to 24 Dual Coax Port Baluns

The Tekmos 24 E1 KATT (Krone & ATT 110) IDC Balun Panel provides 75-120 ohm conversion (coax to twisted pair) for 24 E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of 48 unbalanced 75 ohm coax connections with 24 balanced 120 ohm twisted pair connections.

Only 1U high, the 19 inch rack mount balun panel is available with BNC, 1.6/5.6 (Small Siemens), Type 43 (BT43, SMZ) or Ericsson M4 coax connectors. The panel can be mounted with the coax or KATT IDC connectors on the front.

Also available:
16 E1 Balun Panel
21 E1 Balun Panel
48 E1 Balun Panel

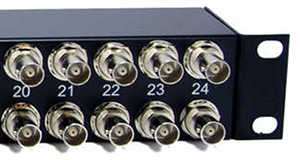

[Photo of 24 E1 Balun Panel with BNC coax connectors]
BNC[Photo of 24 E1 Balun Panel with BNC coax connectors]

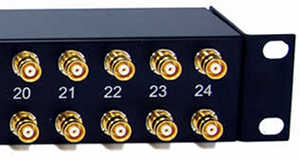

[Photo of 24 E1 Balun Panel with 1.6/5.6 coax connectors]
1.6/5.6[Photo of 24 E1 Balun Panel with 1.6/5.6 coax connectors]

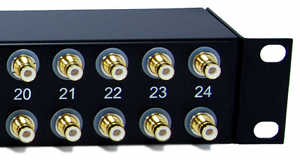

[Photo of 24 E1 Balun Panel with Type 43 coax connectors]
Type 43[Photo of 24 E1 Balun Panel with Type 43 coax connectors]

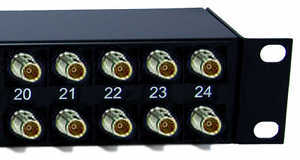

[Photo of 24 E1 Balun Panel with M4 coax connectors]
Ericsson M4[Photo of 24 E1 Balun Panel with M4 coax connectors]
Part NumberDescription
TK-UBP01-024-KTOBalun Panel 24E1 Type 43 to KATT
TK-UBP02-024-KTOBalun Panel 24E1 1.6/5.6 to KATT
TK-UBP03-024-KTOBalun Panel 24E1 BNC to KATT
TK-UBP06-024-KTOBalun Panel 24E1 Ericsson M4 to KATT
Specifications
Coax Connector (75 ohm)48 x BNC(F), 1.6/5.6(F), Type 43(M) or Ericsson M4(F)
Twisted Pair Connector (120 ohm)24 x KATT IDC 4 way
Krone & ATT 110 tool compatible
Transmission LineITU-T G.703 or G.704
SpeedE1 (2.048Mbit/s), E2 (8.448Mbit/s)
Cross TalkBetter than -50dB at 1 to 10Mhz
Insertion LossLess than 0.35dB
Return LossBetter than 18dB
Power RequirementsNo power required
Operating Temperature-40°C to +85°C
MTBF30 years
Dimensions (WxHxD)482 x 44 x 53 mm
Weight1.9 kg max.
MaterialsCase - Zintec, black powder coated
Warranty10 years, parts and labour
ConformanceRoHS, CE
