16 E1 Balun Panel - Coax to Krone IDC

[Photo of 16 E1 Balun Panel with BNC coax connectors]

[Photo of 16 E1 Balun Panel showing Krone IDC connectors]

G703 Balun
75 - 120 ohm
Coax - Twisted Pair
19 inch 1U Rack Mount
- Coax or KATT IDC on the front
E1 (2Mbit/s) and E2 (8Mbit/s)
Modular Construction
- Up to 16 Dual Coax Port Baluns

The Tekmos 16 E1 KATT (Krone & ATT 110) IDC Balun Panel provides 75-120 ohm coax to twisted pair conversion for 16 E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of 32 unbalanced 75 ohm coax connections with 16 balanced 120 ohm twisted pair connections.

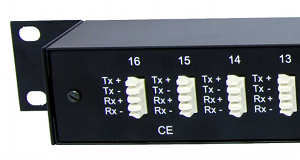

Only 1U high, the 19 inch rack mount balun panel is available with BNC, 1.6/5.6 (Small Siemens), Type 43 (BT43, SMZ) or Ericsson M4 coax connectors. The panel can be mounted with the coax or KATT IDC connectors on the front.

Also available:
21 E1 Balun Panel
24 E1 Balun Panel
48 E1 Balun Panel

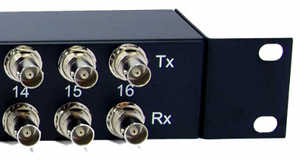

BNC

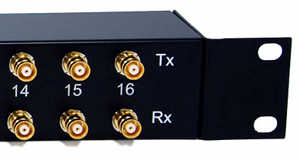

1.6/5.6

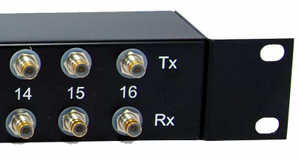

Type 43

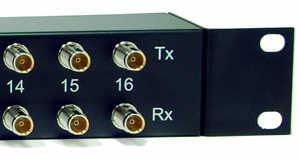

Ericsson M4 [Photo of 16 E1 Balun Panel with M4 coax connectors]

Part Number	Description
TK-UBP01-016-KTO	Balun Panel 16E1 Type 43 to KATT
TK-UBP02-016-KTO	Balun Panel 16E1 1.6/5.6 to KATT
TK-UBP03-016-KTO	Balun Panel 16E1 BNC to KATT
TK-UBP06-016-KTO	Balun Panel 16E1 Ericsson M4 to KATT

Specifications
Coax Connector (75 ohm)	32 x BNC(F), 1.6/5.6(F), Type 43(M) or Ericsson M4(F)
Twisted Pair Connector (120 ohm)	16 x KATT IDC 4 way Krone & ATT 110 tool compatible
Transmission Line	ITU-T G.703 or G.704
Speed	2.048Mbit/s (E1), 8.448Mbit/s (E2) 1.544Mbits/s (T1), 6.312Mbit/s (T2)
Cross Talk	Better than -50dB at 1 to 10Mhz
Insertion Loss	Less than 0.35dB
Return Loss	Better than 18dB
Power Requirements	No power required
Operating Temperature	-40°C to +85°C
MTBF	30 years
Dimensions (W x H x D)	482 x 44 x 53 mm
Weight	1.9 kg max.
Materials	Case - Zintec, black powder coated
Warranty	10 years, parts and labour
Conformance	RoHS, CE
Harmonisation Code	8544–421000
