Dual Balun Fly Lead - BNC to RJ45
75 to 120 ohm Adapter

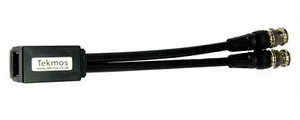

[Photo of Dual Balun Adapter Fly Lead BNC to RJ45]
  • BNC Male - RJ45 Socket
  • 15 cm
  • 75 ohm Unbalanced Coax - 120 ohm Balanced Twisted Pair
  • G703 and G704 Compliant
  • E1 (2Mbit/s) and E2 (8Mbit/s)

The Dual BNC Male Coax to RJ45 Balun Cable provides a low cost convenient solution for connecting your balanced 120 ohm equipment to an unbalanced G703 E1 line. The 6 inch/15cm balun cable provides bi-directional signal conversion, impedance matching and isolation protection. Suitable for 2Mbit/s E1/T1 and 8Mbit/s E2/T2 data streams.

Please see the complete range of Tekmos Balun Cables.

Part NumberDescription
TK-CBA03-208-MCCBalun Adapter Fly Lead BNC Male to RJ45 socket
Specifications
75 ohm Connection2 x BNC(M)
120 ohm ConnectionShielded RJ45/RJ48C Socket
Transmission LineITU-T G.703 or G.704 (transparent)
Speed2.048Mbit/s (E1/T1) and 8.448Mbit/s (E2/T2)
Cross Talk>80dB from 0.1 to 12MHz between 2 baluns 15mm apart
Insertion LossMaximum 0.2dB at 2Mbit/s, 0.3dB at 8Mbit/s
Return Loss-29dB at 2Mbit/s, -21dB at 8Mbit/s
Earthing - GroundingTx and Rx Ring to RJ45 / RJ48 Shield, via 0.1µF capacitor
Dimensions15 cm length
Wiring Scheme1 - Tx Tip, 2 - Tx Ring, 4 - Rx Tip, 5 - Rx Ring
MaterialsCase - ABS UL-94V0 Fire Retardant Plastic
Weight0.2Kg
Warranty10 Years, Parts and Labour
MTBFEstimated 30 Years
Operating Temperature 0° to 50° C
Power RequirementsNone
