RJ45 to Coax - G703 Balun Cables

  • Dual Coax (1 Tx and 1 Rx)
  • Quad Coax (2 Tx and 2 Rx)
  • RJ45 to:-
    • BNC
    • Type 43
    • HDC43
    • 1.6/5.6
    • 1.0/2.3

RJ45 to Coax Balun Cable assemblies provide a cost effective solution for conversion and connection of an unbalanced G703 75 ohm coax network to balanced 120 ohm twisted pair equipment. Balun cables can be supplied as RJ45 to Dual Coax (1 E1) and RJ45 to Quad Coax (2 E1). Compatible with 2Mbit/s E1/T1 and 8Mbit/s E2/T2 data streams. Please contact us for E3 compatible balun cables.

Cables are wired and cut to length as required. Please contact us with your requirements.

Tekmos Balun Cables can be used as an alternative to the Cisco 75-120 ohm Adapter Cable. The Balun Cable plugs directly into the Cisco Port Adapter, eliminating the need for a patch cable.

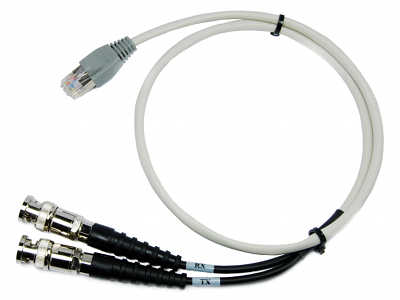

[Photo of Dual BNC to RJ45 Balun Cable 1 E1
Cable Specification
Inner Conductor0.5mm tinned copper wire
Impedance120 ohm
Insulation, SheathCellular Foam PE, PVC
Overall Diameter5.35mm
RJ45 Wiring SchemeAs required
ScreenAluminium foil plus drain wire
Capacitance, DCR40pF/m, 95 ohm/Km
Attenuation at 1Mhz2.2dB/100m
