The Dual Coax to RJ45 Balun Adapter range is a compact, easy to install, reliable solution for connecting a balanced 120 ohm RJ45/RJ48C twisted pair interface to an unbalanced 75 ohm coax network. Compliant with ITU-T G.703 recommendation, the Balun Adapter provides bi-directional signal conversion, impedance matching and isolation protection. Suitable for 2Mbit/s E1/T1 and 8Mbit/s E2/T2 data streams.
Balun Adaptors are also available for mounting on a Bulkhead Plate.
| Part Number | Description |
|---|---|
| TK-CBA01-208-MBH | Balun Adapter Type 43 to RJ45 |
| TK-CBA02-208-FBH | Balun Adapter 1.6/5.6 to RJ45 |
| TK-CBA03-208-FOO | Balun Adapter BNC Female to RJ45 |
| TK-CBA03-208-MOO | Balun Adapter BNC Male to RJ45 |
| Specifications | |
|---|---|
| Coax Connector (75 ohm) | 2 x BNC(M), BNC(F), 1.6/5.6 or Type 43 |
| Twisted Pair Connector (120 ohm) | 1 x RJ45 female shielded |
| Transmission Line | ITU-T G.703 or G.704 |
| Speed | 2.048Mbit/s (E1), 8.448Mbit/s (E2), 1.544Mbits/s (T1), 6.312Mbit/s (T2) |
| Wiring Scheme | 1 - Tx Tip, 2 - Tx Ring, 4 - Rx Tip, 5 - Rx Ring |
| Cross Talk | Better than 80dB |
| Insertion Loss | <0.2dB: 2Mbit/s; <0.3dB: 8Mbit/s |
| Return Loss | 2Mbit/s: -29dB 8Mbit/s: -21dB |
| Power Requirements | None |
| Operating Temperature | -30° to +75° C |
| MTBF | 30 Years |
| Dimensions (W x H x D) | 21.5 x 43 x 62mm |
| Weight | 0.02 kg. |
| Materials | Case - ABS UL-94V0 fire retardant plastic |
| Warranty | 10 years, parts and labour |
| Conformance | RoHS, CE |
| Harmonisation Code | 8544–421000 |

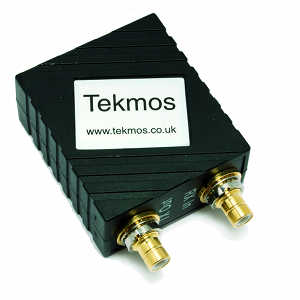

![[Photo of Dual Balun Adapter with Type 43 male coax connectors]](/images/baluns/adaptor/dual-balun-adapter-type-43-coax-bh-300300.jpg "Dual Balun Adapter with Type 43 male coax connectors")
![[Photo of Dual Balun Adapter with 1.6/5.6 female coax connectors]](/images/baluns/adaptor/dual-balun-adapter-1656-coax-bh.jpg "Dual Balun Adapter with 1.6/5.6 female coax connectors")
![[Photo of Dual Balun Adapter with BNC female coax connectors]](/images/baluns/adaptor/dual-balun-adapter-bnc-coax-female.jpg "Dual Balun Adapter with BNC female coax connectors")
![[Photo of Dual Balun Adapter with BNC male coax connectors]](/images/baluns/adaptor/dual-balun-adapter-bnc-coax-male.jpg "Dual Balun Adapter with BNC male coax connectors")
