G703 Balun Adapter Dual Port Coax to RJ45 - Bulkhead Panel Mount

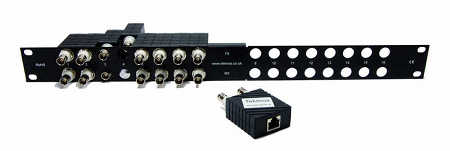

[Photo of Dual Balun Adapters mounted in a bulkhead panel]
  • 2 x Coax - 1 x RJ45 (RJ48)
  • 75 - 120 ohm
  • Coax - Twisted Pair
  • G703 and G704 Compliant
  • E1 (2Mbit/s) and E2 (8Mbit/s)

A range of compact Dual Port Coax 75-120 ohm G703 Balun Adapters suitable for mounting on a 19 inch 1U Bulkhead Plate - can also be used as standalone baluns. Designed to connect a balanced 120 ohm twisted pair interface to an unbalanced 75 ohm coax network. The G703 Balun Adapter provides bi-directional signal conversion, impedance matching and isolation protection. Suitable for 2Mbit/s E1/T1 and 8Mbit/s E2/T2 data streams.

The Tekmos G703 Single Port IDC Krone BNC and 1.6/5.6 Balun Adapters are also suitable for mounting on Bulkhead Plates - ideal for installations where a punchdown termination is required.

Tekmos G703 Balun Adapters are manufactured to exacting standards to ensure reliability and are fully compliant with the ITU-T G.703 recommendation for unsurpassed compatibility with E1, T1, E2 and T2 networks.

[Photo of Dual Balun Adapter with Type 43 male coax connectors]
Type 43[Photo of Dual Balun Adapter with Type 43 male coax connectors]
[Photo of Dual Balun Adapter with 1.6/5.6 female coax connectors]
1.6/5.6[Photo of Dual Balun Adapter with 1.6/5.6 female coax connectors]
[Photo of Dual Balun Adapter with BNC female coax connectors for bulkhead panel mounting]
BNC[Photo of Dual Balun Adapter with BNC female coax connectors for bulkhead panel mounting]
[Photo of IDC Krone Balun BNC Female Bulkhead]
BNC[Photo of IDC Krone Balun BNC Female Bulkhead]
[Photo of IDC Krone Balun 1656 Female Bulkhead]
1.6/5.6[Photo of IDC Krone Balun 1656 Female Bulkhead]
Part NumberDescription
TK-CBA01-208-MBHBalun Adapter Type 43 to RJ45 Bulkhead Mt.
TK-CBA02-208-FBHBalun Adapter 1.6/5.6 to RJ45 Bulkhead Mt.
TK-PPT12-016-AOOBulkhead Plate 1U Type 43 & 1.6/5.6
TK-CBA03-208-FBHBalun Adapter BNC Female to RJ45 Bulkhead Mt.
TK-CBK03-208-FBHBNC Krone Balun Female Bulkhead KATT IDC connector
TK-PPT03-016-AOOBulkhead Plate 1U BNC
Specifications
Coax Connector
75 ohm
2 x BNC(M), BNC(F), 1.6/5.6 or Type 43
Twisted Pair Connector
120 ohm
1 x RJ45 female shielded
Transmission LineITU-T G.703 or G.704
Speed2.048Mbit/s (E1), 8.448Mbit/s (E2)
1.544Mbits/s (T1), 6.312Mbit/s (T2)
Wiring Scheme
RJ48
1 - Tx Tip, 2 - Tx Ring
4 - Rx Tip, 5 - Rx Ring
Cross TalkBetter than 80dB
Insertion Loss<0.2dB: 2Mbit/s
<0.3dB: 8Mbit/s
Return Loss2Mbit/s: -29dB
8Mbit/s: -21dB
Power RequirementsNone
Operating Temperature-30° to +75° C
MTBF30 Years
Dimensions (WxHxD)21.5 x 43 x 62mm
Weight0.02 kg.
MaterialsCase - ABS UL-94V0 fire retardant plastic
Warranty10 years, parts and labour
ConformanceRoHS, CE
Harmonisation Code8544–421000
