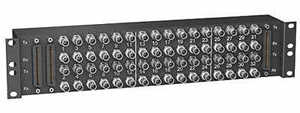

The Lantern Communications 32 E1 Balun Panel converts 64 ports—32 E1 channels—from 75ohm coax to 120ohm twisted pair. Complies with ITU-T G.703 standard for impedance matching and bi-directional signal conversion at 2.048Mbit/s and 8.448Mbit/s data rates.
Coaxial connectors can be specified as BNC, Type 43 (BT) or 1.6/5.6 (Small Siemens). Coax and Telco connectors are mounted on the front of the unit.
Cables are available for connecting the balun panel to Lantern Communications equipment.
| Part Number | Description |
|---|---|
| TKPP.E32.01 | Balun Panel E32 Type 43 |
| TKPP.E32.02 | Balun Panel E32 1.6/5.6 |
| TKPP.E32.03 | Balun Panel E32 BNC |
| Specifications | |
|---|---|
| 75 ohm Connections | 64 x BNC(F), 1.6/5.6(F), or Type 43(M) |
| 120 ohm Connections | 3 x Telco female 50 way |
| Transmission Line | ITU-T G.703 or G.704 (transparent) |
| Speed | 2.048Mbit/s (E1) and 8.448Mbit/s (E2) |
| Wiring Scheme | Lantern Communications |
| Cross Talk | Better than -60dB at 1 to 10Mhz |
| Insertion Loss | Less than 0.35dB |
| Return Loss | Better than 30dB |
| Power Requirements | None |
| Operating Temperature | 0° to 50° C |
| MTBF | Estimated 30 Years |
| Dimensions (W x H x D) | 482 x 88 x 60 mm |
| Weight | 2.5Kg |
| Materials | Case - Zintec, Black Powder Coat |
| Conformance | RoHS CE |
| Harmonisation Code | 8544 - 421000 |
