Carrier Access 21 E1 Balun Panel - Coax to Telco

[Photo of 21 E1 Balun Panel with 1.6/5.6 coax connectors]
[Photo of 21 E1 Balun Panel showing Telco connectors]
  • 42 x Coax to 2 x Telco
    • BNC - Telco
    • 1.6/5.6 - Telco
    • Type 43 - Telco
  • 75 - 120 ohm
  • Coax - Twisted Pair
  • 19 inch 1U Rack Mount
    • Coax or Telco to the front
  • G703 and G704 Compliant
  • E1 (2Mbit/s) and E2 (8Mbit/s)
  • Modular Construction
    • Up to 21 Dual Port Baluns

Designed for connection to Carrier Access Wide Bank 28 DS3™. The Tekmos 21E1 Balun Panel converts 42 ports—21 E1 channels—from 75ohm coax to 120ohm twisted pair. Twisted pair connectors are female 50 way Telco (Amp Champ), one for the transmit circuits, one for the receive circuits.

Complies with ITU-T G.703 standard for bi-directional signal conversion at 2.048Mbit/s and 8.448Mbit/s data rates. Coaxial connectors can be specified as BNC, Type43 (BT) or 1.6/5.6 (Small Siemens).

Cables are available for connecting the balun panel to the Carrier Access Wide Bank 28 DS3.

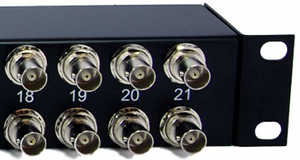

[Photo of 21 E1 Balun Panel with BNC coax connectors]
BNC[Photo of 21 E1 Balun Panel with BNC coax connectors]

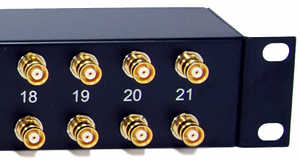

[Photo of 21 E1 Balun Panel with 1.6/5.6 coax connectors]
1.6/5.6Balun Panel 21 E1 BNC to Telco

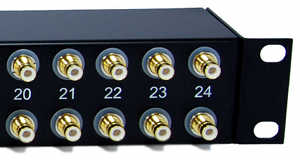

[Photo of 21 E1 Balun Panel with Type 43 coax connectors]
Type 43Balun Panel 21 E1 BNC to Telco
Part NumberDescription
TK-UBP01-021-TTRBalun Panel 21E1 Type 43 to Telco
TK-UBP02-021-TTRBalun Panel 21E1 1.6/5.6 to Telco
TK-UBP03-021-TTRBalun Panel 21E1 BNC to Telco
Specifications
Coax Connector (75 ohm)42 x BNC(F), 1.6/5.6(F), or Type 43(M)
Twisted Pair Connector (120 ohm)2 x 50 way Telco female shielded
Transmission LineITU-T G.703 or G.704
Speed2.048Mbit/s (E1), 8.448Mbit/s (E2)
1.544Mbits/s (T1), 6.312Mbit/s (T2)
Wiring SchemeCarrier Access
1 Telco for transmit (Tx)
1 Telco for receive (Rx)
Cross TalkBetter than -60dB at 1 to 10Mhz
Insertion LossLess than 0.35dB
Return LossBetter than 35dB
Power RequirementsNone
Operating Temperature-40° to +85° C
MTBF30 Years
Dimensions (W x H x D)482 x 44 x 67.5 mm
Weight2 kg max.
MaterialsCase - Zintec, black powder coated
ConformanceRoHS
CE
Harmonisation Code8544 - 421000
Carrier Access Wiring Scheme
E1 ChannelTransmit TelcoReceive Telco
RingTipRingTip
1126126
2227227
3328328
~~~~~
1919441944
2020452045
2121462146
