96 Bearer PCB Balun Panel - Coax to Telco
Agilent acceSS7™

[Photo of 96 Channel (48 Link) Balun Panel
  • 96 Bearers
  • 96 coax
    • Type 43
    • 1.6/5.6
  • 6 telco
    • 16E1 bearers per telco
  • G703 and G704 Compliant
  • E1/T1
  • No Power Required
  • 19 inch rack mount 4U

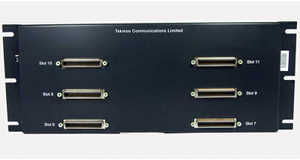

[Photo of 96 Channel PCB Balun Panel]

The 96 Bearer PCB Balun Panel provides signal conversion, impedance matching and isolation protection between 96 unbalanced (75 ohm coax) network channels and a fully populated Agilent acceSS7 system. Available with either Type 43 (SMZ) or 1.6/5.6 (Small Siemens) coax connectors on the network interface. Balanced bearers are output on six 50 way telco connectors (16E1 per telco).

Cables are available for connecting the unbalanced network bearers to the Balun Panel and for connecting the Balun Panel to the Agilent acceSS7 system or Tekmos Splitter Units.

Functionally equivalent to Agilent part nos. E7569-60001 & E7569-60002, this model comprises an integrated pcb based slimline panel. Provides greater flexibility during installation coupled with lower costs.

Part NumberDescription
TK-UBP01-048-TCBBalun Panel PCB 96 Channel Type 43 to Telco
TK-UBP02-048-TCBBalun Panel PCB 96 Channel 1.6/5.6 to Telco
Specifications
Coax Connector (75 ohm)96 x Type 43(M) or 1.6/5.6(F)
Twisted Pair Connector (120 ohm)6 x 50 way Telco female shielded
Transmission LineITU-T G.703 or G.704 (transparent)
SpeedE1 and T1
Wiring SchemeAgilent Technologies acceSS7
Cross TalkBetter than -50dB at 1 to 10Mhz
Insertion LossLess than 0.35dB
Return LossBetter than 25dB
Power RequirementsNone
Operating Temperature-40°C to 85°C
Dimensions (WxHxD)482 x 176 x 21.5 mm
Weight4 kg
ConformanceRoHS, CE
Harmonisation Code8544-421000
