The 24 port Cat6a RJ45 Through Coupler is designed for use as a cross connect panel and can be used for voice and data applications. They exceed the TIA/EIA 568B-2 Category 6a specifications, and can be used for all network protocols. Cat6a 10G performance can only be achieved with the use of Cat6a patch cords.
+44 (0)1624 818275

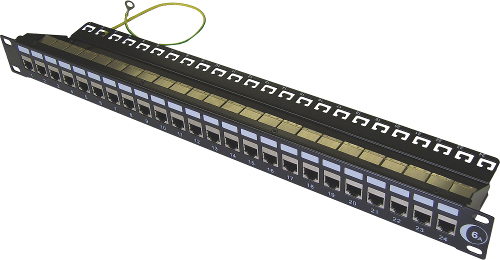

Category 6a Through Coupler Patch Panel, 24 Port, 1U, 19" Rack Mount
![[Photo of 24 Port Shielded RJ45 Through Coupler Patch Panel Cat6]](/images/couplers/Cat6a Photo.jpg "24 Port Shielded RJ45 Through Coupler Patch Panel Cat6a")
- 24 Cat6a RJ45 to RJ45 Through Coupler Ports
- Cross Connect Panel
- Patch Panel
- Data and Voice
- Integrated Cable Management Bar
- 19 inch 1U Rack Mount
- Rack Mount Kit included
The 24 port Cat6 RJ45 Through Coupler allows you to reconfigure your systems quickly and easily. Reroute and patch your RJ45 communication channels with ease. Fully compatible with Ethernet networks using Cat6 shielded cabling.
| Part Number | Description |
|---|---|
| TK-UTC45-024-BOC | Through Coupler 24 Port Cat6a |
| Specifications | |
|---|---|
| Connector | 24 x RJ45 female shielded Cat6a Coupler |
| Wiring | RJ45 to RJ45 straight through |
| Materials - Connector | Contacts – Phosphor bronze on nickel, 50 micro inch Gold plated on Plug contact area Shield – Nickel plated copper alloy Shell – High impact ABS |
| Materials - Case | Mild steel, black powder coated |
| Dimensions (WxHxD) | 482.6 x 43.6 x 91.5 mm |
| Weight | 0.96 kg |
| Power Requirements | No power required |
| Operating Temperature | -10°C to +60°C |
| Warranty | 10 Years |
| Conformance | RoHS CE TIA/EIA 569C.2 10G ISO/IEC 11801 |
