24 E1 Balun Panel - Coax to Telco

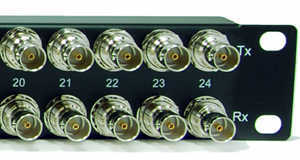

[Photo of 24 E1 Balun Panel with BNC coax connectors]

[Photo of 24 E1 Telco Balun Panel showing Telco connectors]

G703 Balun
75 - 120 ohm
Coax - Twisted Pair
19 inch 1U Rack Mount
E1 (2Mbit/s) and E2 (8Mbit/s)
Modular Construction
- Up to 24 Dual Port Baluns

The 24 E1 Coax to Telco Impedance Matching Balun Panel provides 75-120 ohm conversion for 24 E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of up to 48 unbalanced 75 ohm coax connections with up to 24 balanced 120 ohm twisted pair connections.

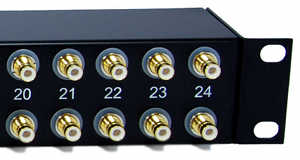

Only 1U high, the 19 inch rack mount balun panel is available with BNC, 1.6/5.6 (Small Siemens) or Type 43 (BT43, SMZ) coax connectors. Twisted pair connectors are 50 way shielded female Telco (AMP Champ).

This panel is also available with 21 E1 circuits.

See the 24 E1 TTR panel if you require the Transmit and Receive circuits on separate Telcos.

[Photo of 24 E1 Telco Balun Panel with BNC coax connectors]

BNC

1.6/5.6

Type 43

Part Numbers	Description
TK-UBP01-024-TOO	Balun Panel 24E1 T43 to Telco
TK-UBP02-024-TOO	Balun Panel 24E1 1656 to Telco
TK-UBP03-024-TOO	Balun Panel 24E1 BNC to Telco

Specifications
Coax Connector (75 ohm)	48 x BNC(F), 1.6/5.6(F) or Type 43(M)
Twisted Pair Connector (120 ohm)	2 x 50 way Telco female shielded
Transmission Line	ITU-T G.703 or G.704
Speed	2.048Mbit/s (E1), 8.448Mbit/s (E2), 1.544Mbits/s (T1), 6.312Mbit/s (T2)
Wiring Scheme	TOO
Cross Talk	Better than -60dB at 1 to 10Mhz
Insertion Loss	Less than 0.35dB
Return Loss	Better than 35dB
Power Requirements	None
Operating Temperature	-40° to +85° C
MTBF	Estimated 30 Years
Dimensions (WxHxD)	482 x 44 x 22 mm
Weight	1.9 kg max.
Materials	Case - Zintec, black powder coated
Conformance	RoHS, CE

**TOO Wiring**
E1 Circuit	Telco	Transmit		Receive
E1 Circuit	Telco	Ring	Tip	Ring	Tip
1	J1	1	26	2	27
2		3	28	4	29
3		5	30	6	31
4		7	32	8	33
5		9	34	10	35
6		11	36	12	37
7		13	38	14	39
8		15	40	16	41
9		17	42	18	43
10		19	44	20	45
11		21	46	22	47
12		23	48	24	49
13	J2	1	26	2	27
14		3	28	4	29
15		5	30	6	31
16		7	32	8	33
17		9	34	10	35
18		11	36	12	37
19		13	38	14	39
20		15	40	16	41
21		17	42	18	43
22		19	44	20	45
23		21	46	22	47
24		23	48	24	49
