16 E1 Balun Panel - Coax to Telco

[Photo of 16 E1 Balun Panel with BNC coax connectors]

[Photo of 16 E1 Balun Panel showing Telco connectors]

G703 Balun
75 - 120 ohm
Coax - Twisted Pair
19 inch 1U Rack Mount
- Coax or Telco to the front
E1 (2Mbit/s) and E2 (8Mbit/s)
Modular Construction
- Up to 16 Dual Port Baluns

The 16xE1 Coax to RJ21 Telco Impedance Matching Balun Panel provides 75 to 120 ohm conversion (Coax to Twisted Pair) for 16 E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of 32 unbalanced 75 ohm coax connections with 16 balanced 120 ohm twisted pair connections.

Only 1U high, the 19 inch rack mount balun panel is available with BNC, 1.6/5.6 (Small Siemens) or Type 43 (BT43, SMZ) 75 ohm Coax Connectors. Twisted pair connectors are 50 way shielded female RJ21 Telco (AMP Champ).

The TOA version is compatible with the AudioCodes Mediant 2000, and many other manufacturer's equipment. The wiring is what could be considered Industry Standard.

The TOO version was originally designed for Certacom Equipment. The wiring scheme is very similar to that of the Avaya MPS1000, for which we can supply suitable cables

The TTR Version presents the Transmit signals on one RJ21 Telco, and the Receive signals on the other RJ21 Telco. This wiring scheme is compatible with the Cisco ASR 903 Router, A900-IMA16D Expansion Module, Cisco 72-5184-01, Tyco 2163442-1. As the Cisco equipment uses the 0-15 numbering scheme, this version is available with either 0-15, or 1-16 numbering. Please specify when ordering, if you have a preference.

BNC

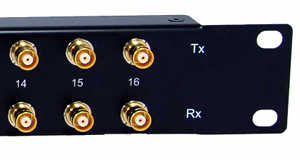

1.6/5.6

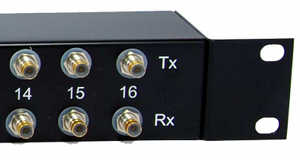

Type 43

Part Number	Description
TK-UBP01-016-TOO	16xE1 Type 43 to RJ21 Telco, TOO Wiring
TK-UBP02-016-TOO	16xE1 1.6/5.6 to RJ21 Telco, TOO Wiring
TK-UBP03-016-TOO	16xE1 BNC to RJ21 Telco, TOO Wiring
TK-UBP01-016-TOA	16xE1 Type 43 to RJ21 Telco, TOA Wiring
TK-UBP02-016-TOA	16xE1 1.6/5.6 to RJ21 Telco, TOA Wiring
TK-UBP03-016-TOA	16xE1 BNC to RJ21 Telco, TOA Wiring
TK-UBP01-016-TTR	16xE1 Type 43 to RJ21 Telco, TTR Wiring
TK-UBP02-016-TTR	16xE1 1.6/5.6 to RJ21 Telco, TTR Wiring
TK-UBP03-016-TTR	16xE1 BNC to RJ21 Telco, TTR Wiring

Specifications
Coax Connector (75 ohm)	32 x BNC(F), 1.6/5.6(F), Type 43(M)
Twisted Pair Connector (120 ohm)	2 x 50 way Telco female shielded
Transmission Line	ITU-T G.703 or G.704
Speed	2.048Mbit/s (E1), 8.448Mbit/s (E2), 1.544Mbits/s (T1), 6.312Mbit/s (T2)
Wiring Scheme	TOO or TOA or TTR
Cross Talk	Better than -60dB at 1 to 10Mhz
Insertion Loss	Less than 0.35dB
Return Loss	Better than 35dB
Power Requirements	None
Operating Temperature	-40° to +85° C
MTBF	30 Years
Dimensions (WxHxD)	482 x 44 x 22 mm
Weight	1.5 kg max.
Materials	Case - Zintec, black powder coated
Conformance	RoHS, CE

TOO Wiring
Telco		Transmit		Receive
J1	J2	Transmit		Receive
E1 Ch.	E1 Ch.	Ring	Tip	Ring	Tip
1	9	1	26	2	27
2	10	4	29	5	30
3	11	7	32	8	33
4	12	10	35	11	36
5	13	13	38	14	39
6	14	16	41	17	42
7	15	19	44	20	45
8	16	22	47	23	48

TOA Wiring
Telco		Transmit		Receive
J1	J2	Transmit		Receive
E1 Ch.	E1 Ch.	Ring	Tip	Ring	Tip
1	9	1	26	2	27
2	10	3	28	4	29
3	11	5	30	6	31
4	12	7	32	8	33
5	13	9	34	10	35
6	14	11	36	12	37
7	15	13	38	14	39
8	16	15	40	16	41

TTR Wiring Scheme
Transmit Telco			Receive Telco
Transmit Telco			Receive Telco
E1 Port	Tx Signal	Pin	Pin	Rx Signal
0/1	Tx Tip P1 Tx Ring P1	14 39	14 39	Rx Tip P1 Rx Ring P1
1/2	Tx Tip P2 Tx Ring P2	13 38	13 38	Rx Tip P2 Rx Ring P2
2/3	Tx Tip P3 Tx Ring P3	10 35	10 35	Rx Tip P3 Rx Ring P3
3/4	Tx Tip P4 Tx Ring P4	9 34	9 34	Rx Tip P4 Rx Ring P4
4/5	Tx Tip P5 Tx Ring P5	16 41	16 41	Rx Tip P5 Rx Ring P5
5/6	Tx Tip P6 Tx Ring P6	15 40	15 40	Rx Tip P6 Rx Ring P6
6/7	Tx Tip P7 Tx Ring P7	12 37	12 37	Rx Tip P7 Rx Ring P7
7/8	Tx Tip P8 Tx Ring P8	11 36	11 36	Rx Tip P8 Rx Ring P
8/9	Tx Tip P9 Tx Ring P9	6 31	6 31	Rx Tip P9 Rx Ring P9
9/10	Tx Tip P10 Tx Ring P10	5 30	5 30	Rx Tip P10 Rx Ring P10
10/11	Tx Tip P11 Tx Ring P11	2 27	2 27	Rx Tip P11 Rx Ring P11
11/12	Tx Tip P12 Tx Ring P12	1 26	1 26	Rx Tip 12 Rx Ring 12
12/13	Tx Tip P13 Tx Ring P13	8 33	8 33	Rx Tip P13 Rx Ring P13
13/14	Tx Tip P14 Tx Ring P14	7 32	7 32	Rx Tip P14 Rx Ring P14
14/15	Tx Tip P15 Tx Ring P15	4 29	4 29	Rx Tip P15 Rx Ring P15
15/16	Tx Tip P16 Tx Ring P16	3 28	3 28	Rx Tip P16 Rx Ring P16
