The 16 E1 Quad Coax Impedance Matching Balun Panel provides 75-120 ohm coax to twisted pair conversion for 16 E1 channels (Tx and Rx). The panel conforms to ITU-T G.703, matching the impedance and signal characteristics of 32 unbalanced 75 ohm coax connections with 8 balanced 120 ohm twisted pair connections. Each RJ45 connector carries 2 E1 channels.
Only 1U high, the 19 inch rack mount balun panel is available with BNC, 1.6/5.6 (Small Siemens) or Type 43 (BT43, SMZ) coax connectors.
| Part Number | Description |
|---|---|
| TK-UBP01-016-QAD | Balun Panel 16E1 Quad Type 43 to RJ45 |
| TK-UBP02-016-QAD | Balun Panel 16E1 Quad 1.6/5.6 to RJ45 |
| TK-UBP03-016-QAD | Balun Panel 16E1 Quad BNC to RJ45 |
| Specifications | |
|---|---|
| Coax Connector (75 ohm) | 32 x BNC(F), 1.6/5.6(F) or Type 43(M) |
| Twisted Pair Connector (120 ohm) | 8 x RJ45 female shielded |
| Transmission Line | ITU-T G.703 or G.704 (transparent) |
| Speed | E1 (2.048Mbit/s), E2 (8.448Mbit/s) |
| Wiring Scheme | 1 – Rx1 Tip (Odd port)2 – Rx1 Ring (Odd port)3 – Rx2 Tip (Even port)4 – Tx1 Tip (Odd port)5 – Tx1 Ring (Odd port)6 – Rx2 Ring (Even port)7 – Tx2 Tip (Even port)8 – Tx2 Ring (Even port) |
| Cross Talk | Better than -50dB at 1 to 10Mhz |
| Insertion Loss | Less than 0.35dB |
| Return Loss | Better than 18dB |
| Power Requirements | No power required |
| Operating Temperature | -40°C to +85°C |
| MTBF | 30 years |
| Dimensions (WxHxD) | 482 x 44 x 22mm |
| Weight | 1.2 kg max. |
| Materials | Case - Zintec, black powder coated |
| Warranty | 10 years, parts and labour |
| Conformance | RoHS, CE |

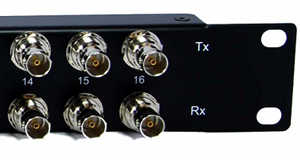

![[Photo of 16 E1 Quad Balun Panel with BNC coax connectors]](/images/baluns/panel/rj45/rj45-balun-panel-16e1-bnc-coax-quad-z-300160.jpg "16 E1 Quad Balun Panel with BNC coax connectors")

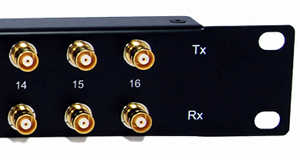

![[Photo of 16 E1 Quad Balun Panel with 1.6/5.6 coax connectors]](/images/baluns/panel/rj45/rj45-balun-panel-16e1-1656-coax-quad-z-300160.jpg "16 E1 Quad Balun Panel with 1.6/5.6 coax connectors")
