16 E1 Balun Panel - Front Mount Coax to RJ45

[Photo of 16 E1 Balun Panel with front mounted BNC coax and RJ45 connectors]

G703 Balun
75 ohm - 120 ohm
Coax - RJ45
E1 and E2
19 inch 1.5U Rack Mount
- Coax and RJ45 on the front
Rack Mount Kit included

The 16 E1 Coax to RJ45 Front Mount Impedance Matching Balun Panel provides 75-120 ohm coax to twisted pair conversion for 16 E1 channels (Tx and Rx). The panel conforms to ITU-T G703, matching the impedance and signal characteristics of up to 32 unbalanced 75 ohm coax connections with up to 16 balanced 120 ohm twisted pair connections.

Only 1.5U high, the 19 inch rack mount balun panel is available with BNC, 1.6/5.6 (Small Siemens), Type 43 (BT43, SMZ) or Ericsson M4 coax connectors. The coax and RJ45 connectors are on the front.

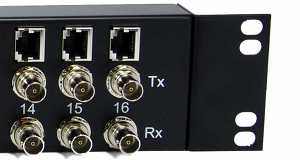

BNC

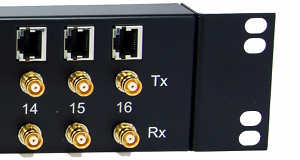

1.6/5.6

Type 43

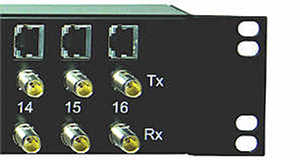

Ericsson M4 [Photo of 16 E1 Balun Panel with front mounted Ericsson M4 coax and RJ45 connectors]

Part Number	Description
TK-UBP01-016-RJF	Balun Panel 16E1 Type 43 to RJ45
TK-UBP02-016-RJF	Balun Panel 16E1 1.6/5.6 to RJ45
TK-UBP03-016-RJF	Balun Panel 16E1 BNC to RJ45
TK-UBP06-016-RJF	Balun Panel 16E1 Ericsson M4 to RJ45

Specifications
Coax Connector (75 ohm)	BNC(F), 1.6/5.6(F) or Type 43(M)
Twisted Pair Connector (120 ohm)	Shielded RJ45/RJ48C
Transmission Line	ITU-T G.703 or G.704
Speed	E1 (2.048Mbit/s), E2 (8.448Mbit/s)
Wiring Scheme	RJ48C–4 wire E1 1 - Tx Tip, 2 - Tx Ring 4 - Rx Tip, 5 - Rx Ring
Cross Talk	Better than -50dB at 1 to 10Mhz
Insertion Loss	Less than 0.35dB
Return Loss	Better than 18dB
Power Requirements	No power required
Operating Temperature	-40°C to +85°C
MTBF	30 years
Dimensions (WxHxD)	482 x 66 x 30.5 mm
Weight	1.5 kg max.
Materials	Case - Zintec, black powder coated
Warranty	10 years, parts and labour
Conformance	RoHS, CE
