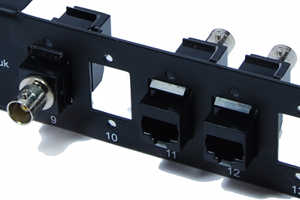

![[Photo of Single Balun Adapter mounted in a combination panel]](/images/baluns/adaptor/single-balun-adapter-in-combination-panel-image2-300200.jpg "Single Balun Adapter mounted in a combination panel")
The BNC to RJ45 Single Port Balun Adapter is a compact, reliable, easy to install solution for connecting a balanced 120 ohm RJ45/RJ48C twisted pair interface to an unbalanced 75 ohm coax network.
Designed for installation in the Combination Panel. Baluns can be installed with BNC or RJ45 to the front.
Also available as a standalone balun.
| Part Number | Description |
|---|---|
| TK-CBA03-208-FSB | Balun Adapter Single Port BNCF to RJ45 |
| Specifications | |
|---|---|
| Coax Connector (75 ohm) | 1 x BNC(F) |
| Twisted Pair Connector (120 ohm) | 1 x Shielded RJ45 |
| Transmission Line | ITU-T G.703 or G.704 (transparent) |
| Speed | 2.048Mbit/s (E1/T1) and 8.448Mbit/s (E2/T2) |
| Wiring Scheme | 4-Tip, 5-Ring |
| Insertion Loss | Maximum 0.2dB at 2Mbit/s, 0.3dB at 8Mbit/s |
| Return Loss | -29dB at 2Mbit/s, -21dB at 8Mbit/s |
| Dimensions (WxHxD) | 36.0mm x 24.2mm x 21mm |
| Earthing - Grounding | BNC Ring to RJ45 / RJ48 Shield, via 0.1µF capacitor |
| Wiring Scheme | 4 - Tip, 5 - Ring |
| Materials | Case - ABS UL-94V0 Fire Retardant Plastic |
| Weight | <0.1Kg |
| Warranty | 10 Years, Parts and Labour |
| MTBF | Estimated 30 Years |
| Operating Temperature | 0° to 50° C |
| Power Requirements | None |
| Harmonisation Code | 8544 - 42 - 10 |

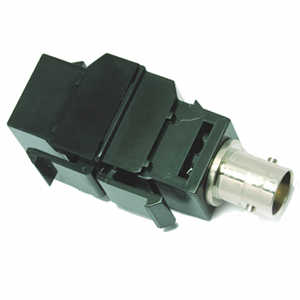

![[Photo of Single BNC Balun Adapter for panel mounting]](/images/baluns/adaptor/balun-adapter-single-port-bnc-rj45-pm-300300.jpg "Single BNC Balun Adapter for panel mounting")
