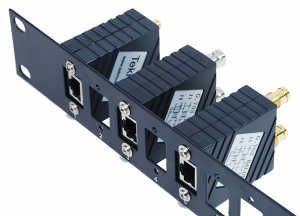

![[Photo of Combination Through Coupler Panel with panel mount Balun Adapters]](/images/baluns/adaptor/dual-balun-adaptors-on-combination-panel-300216.jpg "Combination Through Coupler Panel with panel mount Balun Adapters")
A range of compact dual coax Balun Adapters suitable for mounting on the Combination Panel - can also be used as standalone baluns. Designed for connecting a balanced 120 ohm twisted pair interface to an unbalanced 75 ohm coax network.
Compliant with ITU-T G.703 recommendation, the balun adapter provides bi-directional signal conversion, impedance matching and isolation protection.
| Part Number | |
|---|---|
| TK-CBA01-208-MPM | Balun Adapter Type 43 to RJ45 Panel Mt. |
| TK-CBA02-208-FPM | Balun Adapter 1.6/5.6 to RJ45 Panel Mt. |
| TK-CBA03-208-FPM | Balun Adapter BNC Female to RJ45 Panel Mt. |
| TK-PPT00-016-COM | Combination Panel 19" 1U |
| Specifications | |
|---|---|
| Coax Connector (75 ohm) | BNC(F), 1.6/5.6(F) or Type 43(M) |
| Twisted Pair Connector (120 ohm) | Shielded RJ45/RJ48C |
| Transmission Line | ITU-T G.703 or G.704 |
| Speed | 2.048Mbit/s (E1), 8.448Mbit/s (E2) 1.544Mbits/s (T1), 6.312Mbit/s (T2) TK-CBA03-034-FPM only 34.368Mbit/s (E3) |
| Wiring Scheme | 1 - Tx Tip, 2 - Tx Ring, 4 - Rx Tip, 5 - Rx Ring |
| Cross Talk | Better than 80dB |
| Insertion Loss | <0.2dB: 2Mbit/s <0.3dB: 8Mbit/s |
| Return Loss | 2Mbit/s: -29dB 8Mbit/s: -21dB |
| Power Requirements | None |
| Operating Temperature | 0° to 50° C |
| MTBF | Estimated 30 Years |
| Dimensions (W x H x D) | 21.5 x 43 x 62mm |
| Weight | 0.02Kg |
| Materials | Case - ABS UL-94V0 Fire retardant Plastic |
| Warranty | 10 years, parts and labour |
| Conformance | RoHS, CE |
| Harmonisation Code | 8544–421000 |
