Description

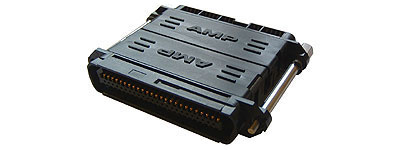

This is a versatile little device which can be used in 120 ohm twisted pair installations between the customers
network and the AcceSS7TM monitoring system. The in-line resistors "T" off a -20dB sample of
the primary G.703 0dbdsx signal to the AcceSS7TM system, minimising the effect of AcceSS7TM
connection to network.
Another use is as a flexible in-line terminating resistor module, for use with our 6 Port Splitter Panel. The resistors
are mounted in parallel across the pairs, 120 ohm for high speed and 130 ohm for low speed interfaces.
The case is coated with an electro-conductive nickel screening compound for EMI/RFI shielding.
|
