16 Port Shielded RJ45 to Telco Through Coupler Panel

Description

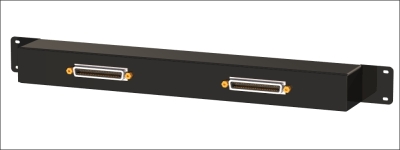

The Tekmos TKPP.S16.RJ 16 x E1 Through Coupler Panel provides interconnectivity between Telco connectors and individual RJ45 circuits. The Panel consists of a Black Powder Coated 1U high 19" Rack mountable Zintec chassis. Internally there are 2 PCBs, providing connections from the RJ45s to the Telcos.

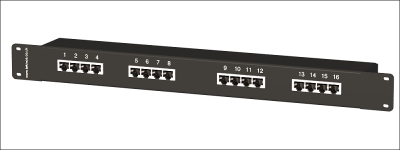

Mounted to the front are 16 Shielded RJ45 Female connectors, numbered 1 through 16. All markings are silk-screened.

Wiring Scheme
RJ45	PIN	Telco	PIN
1	1	1	26
1	2	1	1
1	4	1	27
1	5	1	2
2	1	1	29
2	2	1	4
2	4	1	30
2	5	1	5
etc	etc	etc	etc

Part Numbers	Description
TKPP.S16.RJ	16 x E1 RJ45 to Telco Through Coupler
